BOTTOM ENTRY REACTOR MECHANICAL SEALS

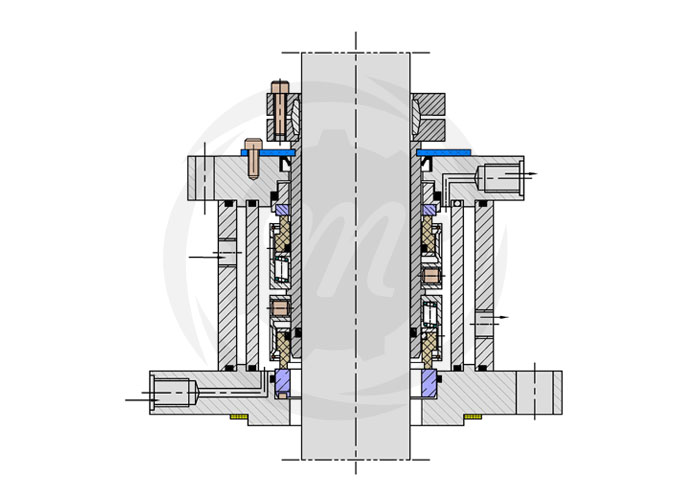

GW60/GW61B Bottom Entry Agitator Reactor Seals Mainly Used In Horizontal Reactors, Bottom Entry Agitators,And Pharma Process Equipments.
As a factory of international reputation, we are engaged in manufacturing and supplier a huge range Bottom entry reactor Mechanical Seal. The design may either without bearing or with integral bearing. These agitator mixer Seals are used for Exclusive Solid Seal Faces, Stationary Seats, thus the Lowest Level of Seal Face distortion when Expose to Compressive Load and Thermal Pressure.
Bottom Entry Mixer Mechanical Seals
Bottom Entry Reactor Seals are designed and built specially for high pressure and high vacuum applications and are internally balanced in accordance with the product size. They remain closed in case of pressure reversal or pressure fluctuations.
Bottom Entry Mixer Seal are widely used in pharmaceutical and sugar industries with bottom entry agitator and mixer.
The seals are also used in full vacuum conditions in sugar plants with bottom entry pan circulators.These are available in single and double bearing arrangement as per requirement.
- For top entry drives
- Glass Lined Reactor Or Agitators
- Double seals
- Unbalanced Seal mechanism
- Independent of direction of rotation
- Multiple springs rotating
- Liquid-lubricated
- Cooling provision with jacketing
- With and without bearing
| Seal Ring Face | : Carbon, Silicon, TC |
| Mating Ring Face | : Silicon, TC |
| Secondary Seals | : Viton/PTFE/FEP |
| Metal Parts | : SS 316/SS 304 |
| Pressure | : Up to 60 Bars |
| Temperature | : (-)20 to 250 deg C |
| Speed | : up to 25 m/s |
| Size | : 25 to 150mm |
- Used in paper & pulp
- plastic
- pharmaceuticals & sugar industries.
| Item No | |
|---|---|
| 1 | |
| 2 | |
| 5 | |
| 6 | |
| 7.1 | |
| 12 | |
| 13 | |
| 19 |
