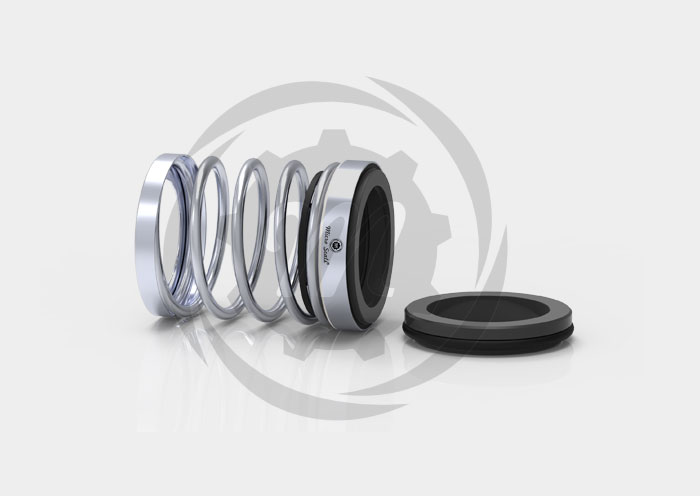

Rubber Bellow Mechanical Seals
MSRB21 Mechanical Seal for Clean Water Pumps,Piping Pumps and Vacuum Pumps
We are offering all type of rubber bellow seals which is widely used in centrifugal pumps and rotating Equipments. These Rubber Bellow Mechanical Seal are highly used in water transfer Applications. Mechanical seals are simply another means of controlling leakage of a process where other means are deemed to be less capable of performing the task adequately.
Water Pump Seals
Rubber Bellow Seals are mainly use in wastewater treatment plants for the sewage applications. Due to its compact design it can be easily mounted.
It has a unique rubber bellow secondary seal, which provides a high degree of axial flexibility and protects the shaft/ sleeve from fretting.
Rubber Bellow Mechanical Seals can be use regardless of direction of rotation since the driving torque is not transmitted through the coil spring. The required driving torque is through the spring and spring holder. The single coil spring will avoid effluent particle.
- Single seal
- Cartridge Unit
- Balanced Seal
- Independent of direction of rotation
- Multiple Spring arrangement
- Stationary Spring
| Seal Ring Face | : Carbon, Silicon, TC |
| Mating Ring Face | : Silicon, TC |
| Secondary Seals | : Viton/PTFE/Graphite |
| Metal Parts | : SS 316, |
| Pressure | : up to 15 bars |
| Temperature | : (-)50c to (+)350c |
| Speed | : up to 25 m/s |
| Size | : 19 mm to 100 mm |
Generally used for handling highly corrosive chemicals, high temperature applications and Hydrocarbons In Petrochemical industry, petroleum refinery , Paper & Pulp industry

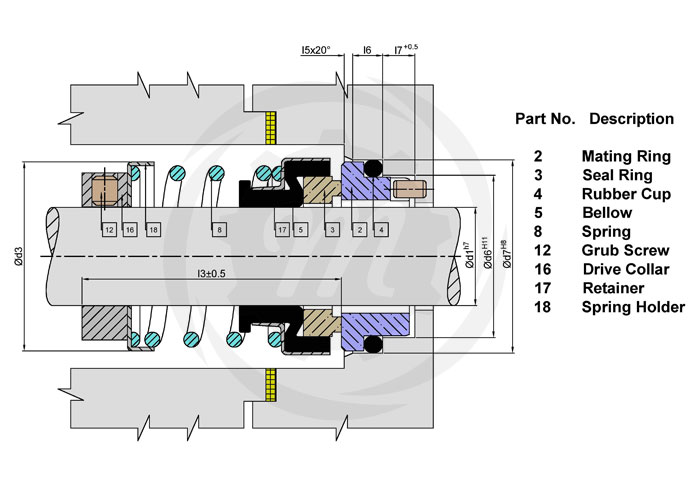

| Item No | Description |
|---|---|
| 2 | Mating Ring |
| 3 | Seal Ring |
| 4 | Rubber Cup |
| 5 | Bellow |
| 8 | Spring |
| 12 | Grubscrew |
| 16 | Drive Collar |
| 17 | Retainer |
| 18 | Spring Holder |
