SINGLE SPRING UNBALANCED MECHANICAL SEALS

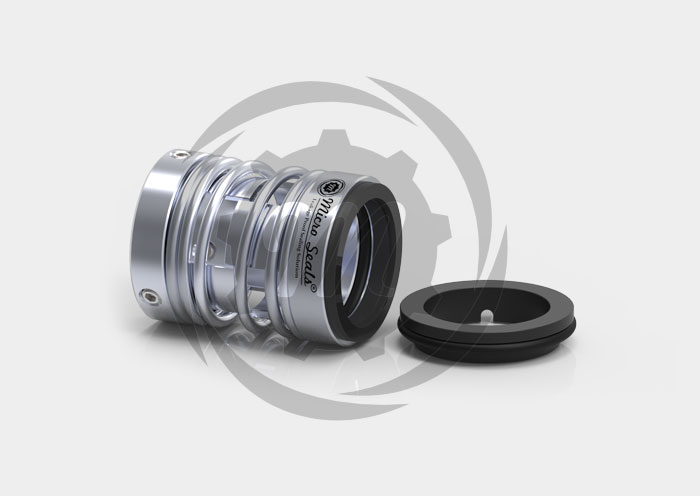

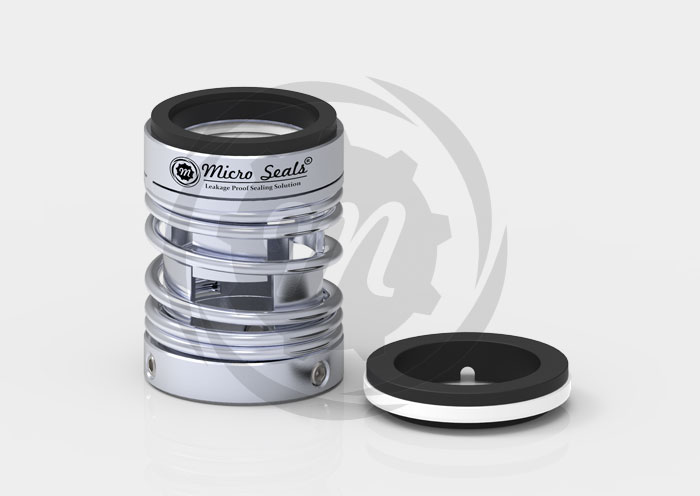

O22U/V23U Unbalanced Single Spring Mechanical Seals For Process Pumps, Pulp Pumps, Circulating Pumps For Handling Slurries Sludge
We manufacture, supply and export the finest quality of single spring unbalance seals, for various industrial applications. The single spring unbalance seals are used mainly in dirty and congealing application. The seals are highly demanded for the anti abrasive applications. These seals are easy to install and operate for different application being used in various industries. These seals are compact in design for handling liquids of varying contamination including Slurries Sludge, sewage, Viscous and crystallizing Solution. These Seals are designed in both balanced and unbalanced version based on pressure parameters. Spring clogging does not occur in single spring seals. We are the manufacturer of pusher seal.
Single Spring Unbalanced Mechanical seals
Single Spring Unbalance Seals is unbalanced single acting helical coil spring seals independent of direction of rotation.
single Coil unbalanced seals are internally mounted and easy to install.rotary seal ring is driven by the motion transmitted by the shaft to the spring.slippages are eliminated, protecting the shaft and sleeve from fretting.
Spring completely protected from the product.Easily handle for media containing abrasive particles and solids
- Single Spring Mechanical Seal
- Single acting
- Unbalanced
- Inside mounted
- Independent of direction of rotation
| Seal Ring Face | : Carbon, Silicon, TC |
| Mating Ring Face | : Silicon, TC |
| Secondary Seals | : Viton/PTFE/GFT |
| Metal Parts | : SS 316, Alloy 20, 904L |
| Pressure | : 10 bars (Max) |
| Temperature | : -)50c to (+)280c |
| Speed | : 2900 rpm (Max) |
| Size | : 16 mm to 100 mm |
Specially used in paper industries, petrochemicals, petroleum refinery etc

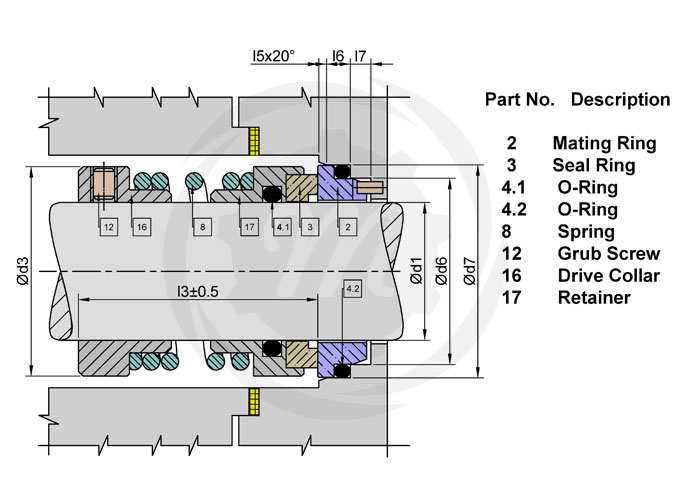

| Item No | Description |
|---|---|
| 2 | Mating Ring |
| 3 | Seal Ring |
| 4.1 | O-Ring |
| 4.2 | O-Ring |
| 8 | Spring |
| 12 | Grub Screw |
| 16 | Drive Coller |
| 17 | Retainer |
