WAVE SPRING MECHANICAL SEALS
O28U Wave Spring Pusher Seals for Chemical standard pumps, KSB/WILO Water Pumps, sewage pumps and Double Suction Pumps
We have developed a separate unit, necessary for making stock of the offerings. In addition to this, we maintain complete hygiene inside the unit. The company is acknowledged as a reliable name based in Mumbai(India) and offering products to diverse locations. wave spring seals for most general application, being used in industries like Paper and Pulp, Sugars, Sewage, Polymer, Rubber etc. Its compact design with reduced axial length is the major advantage of using single wave spring seals. These seal are designed to handle dirty and slurry application as spring clogging does not occur.

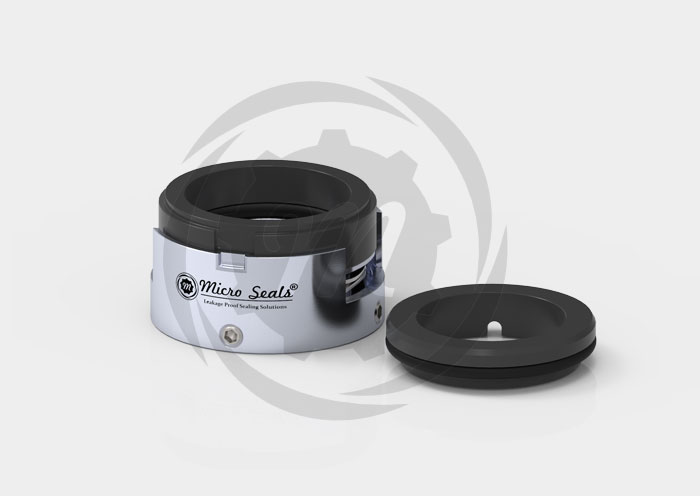

Single Wave Spring Mechanical Seals
Wave Spring Seals are internally mounted which are non-clogging. They are designed for high viscous, abrasive media and are universal application and the spare parts are interchangeable without modification.
Seal faces are easily inserted. They can be designed in which spring is isolated from pump media.Torque transmission from retainer shell to seal ring is through drive pin.
- Single Spring Mechanical Seal
- Wave Spring Mechanical Seal
- For plain shaft
- Super Sinus wave spring
- Single acting
- Unbalanced
- Inside mounted
- Independent of direction of rotation
| Seal Ring Face | : Carbon, Silicon, TC |
| Mating Ring Face | : Silicon, TC |
| Secondary Seals | : Viton/PTFE/EPDM |
| Metal Parts | : SS 316, Alloy 20, 904L |
| Pressure | : 10 bars (Max) |
| Temperature | : (-)20c to (+)200c |
| Speed | : up to 2900 RPM(Max) |
| Size | : 15 mm to 100 mm |
This type seals are Used in centrifugal pumps and High Viscosity Handling pumps in purification plants, pulp & paper, chemical, petrochemical and sugar industries, brewery and pharmaceutical applications

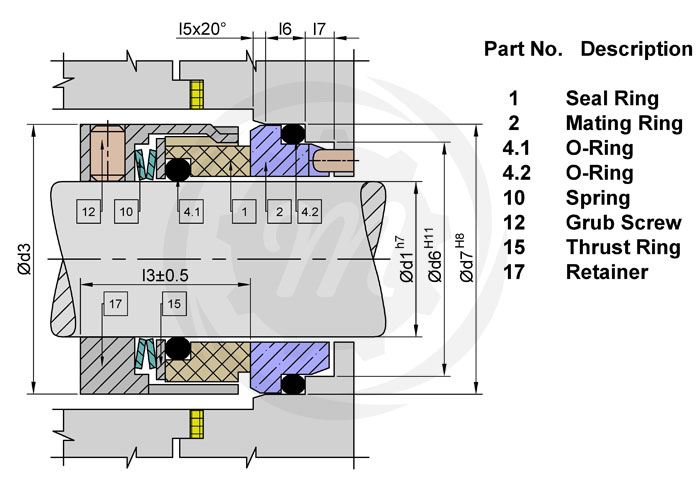

| Item No | Description |
|---|---|
| 1 | Seal Ring |
| 2 | Mating Ring |
| 4.1 | O-Ring |
| 4.2 | O-Ring |
| 10 | Spring |
| 12 | Grub Screw |
| 15 | Thrust Ring |
| 17 | Retainer |
