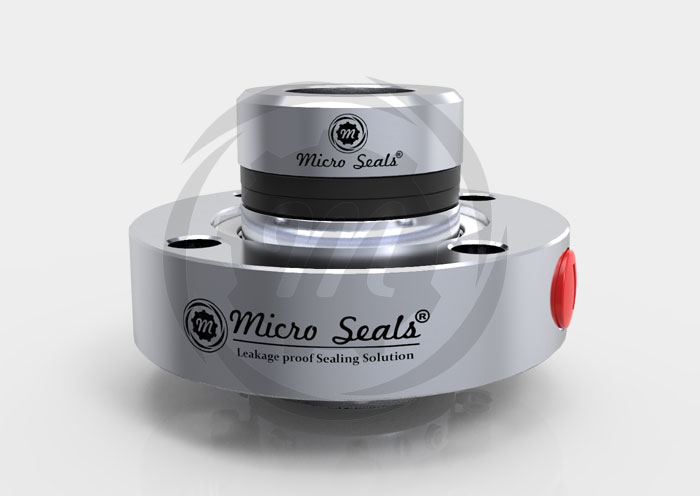

MULTI SPRING SLURRY MECHANICAL SEALS
CS40 Multi Spring Cartridge Slurry Seals Mainly Used For Warman Slurry Pumps, Heat Oil Pump and Flue Gas Desulphurization Equipment
This seal specially designed Back plate of pump and Impeller in this particular seal which gives better seal life and performance. Hydraulically balanced faces for excellent seal reliability. Specially coated spring is located outside the process. Flushing helps to lubricate the seal faces from atmospheric side of mechanical seal. MULTI SPRING SLURRY SEALS seal for Non metallic pump , standardized modular design and Inside Mounted.
Multi Coil Cartridge Mechanical Seals
Multi Spring Slurry Seal is special purpose Multi coil cartridge balanced seal designed developed for handling slurries, sludges, thick syrups and polymerizing fluids.
The springs are isolated from the fluid being sealed by dynamic O-ring, which enhances the seal life.
This compact design Multi Coil slurry seal permits to use in all types of centrifugal pumps.
- Single seal
- Cartridge Unit
- Balanced Seal
- Independent of direction of rotation
- Multiple Spring arrangement
- Stationary Spring
| Seal Ring Face | : Carbon, Silicon, TC |
| Mating Ring Face | : Silicon, TC |
| Secondary Seals | : Viton/PTFE/GFT |
| Metal Parts | : SS 316, Alloy 20, |
| Pressure | : up to 15 Bars |
| Temperature | : (-)50 to 180°C |
| Speed | : up to 25 m/s |
| Size | : 25 to 150mm |
- Paper industries.
- Petrochemicals.
- Petroleum refinery.
| Item No | Description |
|---|---|
| 1 | Seal Ring |
| 2 | Mating Ring |
| 5 | Bellow Unit |
| 6 | Gasket |
| 7.1 | Graphoil |
| 12 | Grubscrew |
| 13 | Allen Bolt |
| 19 | Drive Collar |
