Six Passage Air Hydraulic Rotary Joints
Six Passage Air Hydraulic Rotary Joints To Transfer Multi Media For Applications Like Air Cleaning, Spindle Cleaning and More
The Type-MSJ81 is Multi Port Rotary unions with precise functionality. Two or more media can run simultaneously without mixing. Multi Port Rotary joints are manufactured using quality assured raw material and progressive technology in compliance with international standards. Keeping in mind the detailed specifications of our clients, we provide these rotary unions to our clients with several specifications.
Six Port Air-Hydraulic Rotary Joints

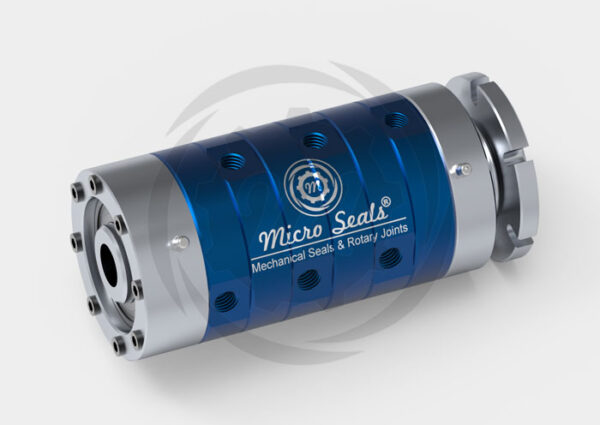

MSJ81-6P Rotary Joints
- Six port flow design with different media or same with varying pressure and flow rate.
- Rotating union is self-supported
- Axial housing connection
- Hardened Sealing surfaces
- Special Seals
- Ball bearings lubricated for life
- Low or high torque and weight optimised design
- Aluminium or Stainless steel housing; stainless steel or carbon steel rotor, depending on model
| Elastomer | Viton, EPDM, NBR, |
| Bearing | Composite Bronze Bearing, Ball Bearing |
| MOC | SS 316, Carbon Steel, Aluminium |
| Size | 1/8″ (DN06) – 3/4″ (DN40) |
| Media | : Air, Vacuum, Hydraulic oil, brake fluid |
| Max. Air Pressure | : 10 bar |
| Max. Vacuum | : 7 kPa |
| Max. Hydraulic Pressure | : 210 bar |
| Max. Brake fluid Pressure | : 207 bar |
| Max. Temperature | : 120°C |
| Max. Speed | : 250 rpm |
Do not work with max. pressure at max. speed.
- Oil and Gas
- Plastics
- Agriculture and Construction
- Food and Medical
- Chemical
- Hydro power
- Printing and Packaging
- Tire and Rubber
“Deublin” 1379/1479 series
“Kadant” MP series
“Rototech” M series
“Rotofluid” 10 series
“Rotoflux” M series
“Maier” MP series
“Haag-zeissler” MRF series
“DSTI” GP series
Duffnorton” MPMC/MSMC series
