SINGLE SPRING BALANCED MECHANICAL SEALS
019B/20B Balanced Single Spring Mechanical Seals For Process Pumps, Boiler Feed Pumps And For Handling Light Hydrocarbons
We are well known as a reliable Single Spring Seal Manufacturers and Exporters. Our Seals are produced using superb crude material that guarantees fantastic toughness.With our experts, we provide clients a high quality Single Coil Spring Balanced Seal which are obtained by basically changing the carbon face assembled through circlip provided. These balanced seals are manufactured as for ‘O’ Ring & PTFE wedge type Secondary Seals. The offered Single Coil Spring Balanced Seal are appreciated for its premium quality, high efficiency and durability. We are giving these spring balanced seals at industry leading rates within stipulated periods of time.
Single coil Balanced Mechanical Seals
Single Spring Balanced Seals especially designed to suit Slurry Media Sealing,light contamination, dirty media and clogging type application. This type also allows it to fit onto a normal shaft without any balancing step. The mechanical drive of this seal is realised by grub screw which lock onto the shaft.
Balanced Single spring seals has a limited axial length, compact shape which allows easy mounting.Balance and unbalanced version can just be obtained by simply changing the carbon face assembled through circlip provided.
- Single Spring Mechanical Seal
- Single acting
- balanced
- Inside mounted
- Independent of direction of rotation
| Seal Ring Face | : Carbon, Silicon, TC |
| Mating Ring Face | : Silicon, TC |
| Secondary Seals | : Viton/PTFE/GFT |
| Metal Parts | : SS 316, Alloy 20, 904L |
| Pressure | : 30 bars (Max) |
| Temperature | : (-)50c to (+)180c |
| Speed | : 1500 rpm (Max) |
| Size | : 10 mm to 100 mm |
High pressure pumps, refineries, fertilizers, nuclear plants and petroleum products.

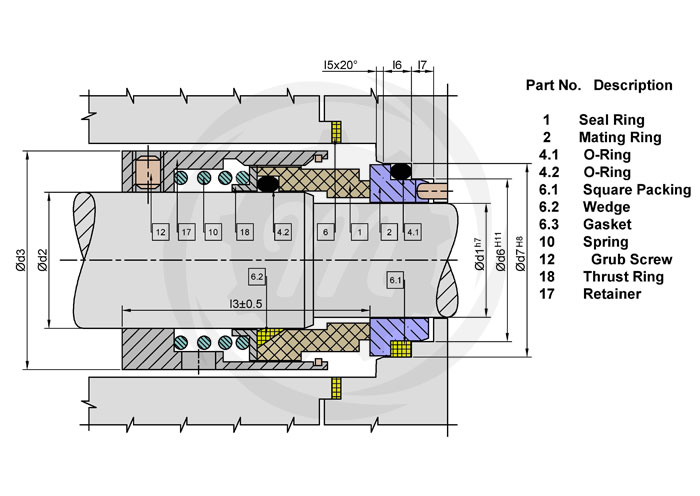

| Item No | Description |
|---|---|
| 1 | Seal Ring |
| 2 | Mating Ring |
| 4.1 | O-Ring |
| 4.2 | O-Ring |
| 6.1 | Square Packing |
| 6.2 | Wedge |
| 6.3 | Gasket |
| 10 | Spring |
| 12 | Grub Screw |
| 18 | Thrust Ring |
| 17 | Retainer |
