Four Port High Speed Rotary Joints For Multi Media
High Speed Four Port Rotary Joints Suitable For Applications Such As Clamping and Unclamping, Work piece, Or Spindle Cooling
The Type-MSU100 is Multi Port Rotary unions with precise functionality. Two or more media can run simultaneously without mixing. Multi Port Rotary joints are manufactured using quality assured raw material and progressive technology in compliance with international standards. Keeping in mind the detailed specifications of our clients, we provide these rotary unions to our clients with several specifications.

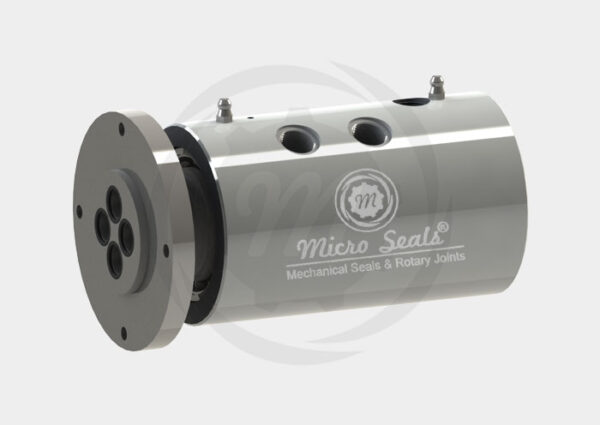

High Speed Four Passage Multi-Purpose, Multi-Media Rotary Joints
MSU100-4P Four Rotary Joints
- Four Passages design with different media flow
- Rotating union is self-supported
- Axial housing connection
- Hardened Sealing surfaces
- Special Seals
- Ball bearings lubricated for life
- Low or high torque and weight optimised design
- Aluminium or Stainless steel housing; stainless steel or carbon steel rotor, depending on model
| Elastomer | Viton, EPDM, NBR, PTFE, CFT, BFT |
| Bearing | Composite Bronze Bearing, Ball Bearing |
| MOC | SS 316, Carbon Steel, Aluminium |
| Size | 1/8″ (DN06) – 11/2″ (DN40) |
| Media | : Air, Vacuum, Hydraulic oil, brake fluid |
| Max. Air Pressure | : 10 bar |
| Max. Vacuum | : 7 kPa |
| Max. Hydraulic Pressure | : 210 bar |
| Max. Brake fluid Pressure | : 207 bar |
| Max. Temperature | : 120°C |
| Max. Speed | : 250 rpm |
Do Not Work With Maximum Pressure At Maximum Speed.
- Oil And Gas
- Plastics
- Agriculture And Construction
- Food And Medical
- Chemical
- Hydro Power
- Printing And Packaging
- Tire And Rubber
-
“Deublin” 1379/1479 series
-
“Kadant” MP series
-
“Rototech” M series
-
“Rotofluid” 10 series
-
“Rotoflux” M series
-
“Maier” MP series
-
“Haag-zeissler” MRF series
-
“DSTI” GP series
-
Duffnorton” MPMC/MSMC series
