METAL BELLOW CARTRIDGE MECHANICAL SEALS

CM46S Metal Bellow Single Cartridge Seal For  Chemical Process Pump, Wastewater Pump , Food Processing and Power Generation Pump

Metal Bellow Cartridge Seal is widely used in assembly pumps, clinker grinders, sludge pumps, pulp & syrup pumps, oil pipeline pumps and boiler feed water pumps. Further, our rigidly constructed product range is offered in various specifications to meet the requirements of clients. Rotating bellows design acts to clear convolutions and prevent accumulation of debris. These bellow seals are constructed by welding a series of diaphragms together at the edges to form a bellows unit. Recommended for high temperature mediums e.g. hot oils, pitch, tar and other hydrocarbons, fuels, liquid gases and other mediums with low content of abrasives.

High Pressure Metal Bellow Mechanical seals

(Type CM46S)

Metal Bellow Cartridge Seal Has its unique Features which include

  • Easy to replace individual seal-wear parts.
  • Single acting Inside mounted.
  • Multi spring design.
  • Springs are out of product, minimizes corrosion and stress related failure.
  • Dynamic elastomer moves on nonmetallic surface eliminating fretting Faces.
  • designed for optimum heat dissipation.
  • Single seal
  • Cartridge
  • Optimized pressure-Balanced design
  • Independent of direction of rotation
  • Metal bellows
  • Single seal with quench and lip seal or throttle ring
Seal Ring Face   : Carbon, Silicon, TC
Mating Ring Face   : Silicon, TC
Secondary Seals   : Viton/PTFE/GFT/Karlez
Metal Parts   : SS-316/Hast-C/Monel
Pressure   : 2000 kpa
Temperature   : 400 C
Speed   : 0m/sec
Size   : 19 mm to 100 mm

High Pressure Metal Bellow Seal is widely used in assembly pumps, clinker grinders, sludge pumps, pulp & syrup pumps, oil pipeline pumps and boiler feed water pumps.

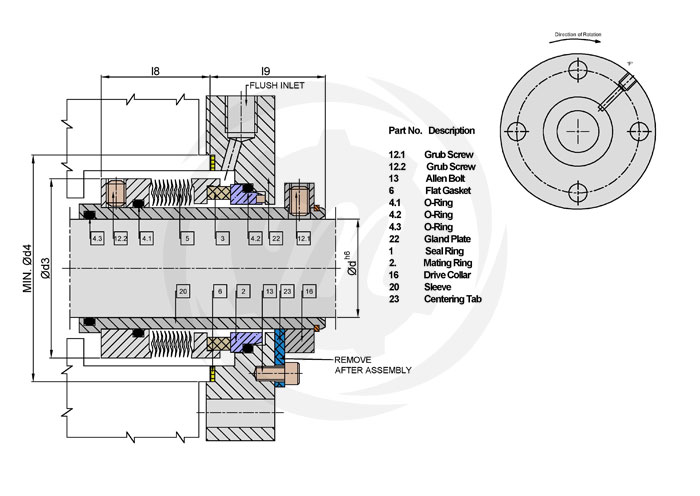

Item No Description
12.1 Grub Screw
12.2 Grub Screw
13 Alien Bolt
6 Flat Gasket
4.1 O-Ring
4.2 O-Ring
4.3 O-Ring
22 Gland Plate
3 Seal Ring
2 Mating Ring
16 Drive Coller
20 Sleeve
23 Centering Tab
