TEFLON / PTFE BELLOW MECHANICAL SEALS

  • John Crane type 10T/10R Replacement seal

  • Flowserve Chemiepac 970 replacement seal

  • Leak Proof Series 20M & 20 R1 replacement seal

  • Flowserve TBR replacement seal

TEFLON / PTFE BELLOW MECHANICAL SEALS

Teflon Bellow Seal designed to handle highly corrosive chemical, such as concentrated acids, caustic, strong oxidizing and reducing agents, and chemically active organic components. All elastomers have both an upper and lower temperature limit that prevents them from sealing many hot resins, polymers and cryogenic applications. Hot oils are another high temperature sealing problem.

Ptfe Bellow Mechanical seals

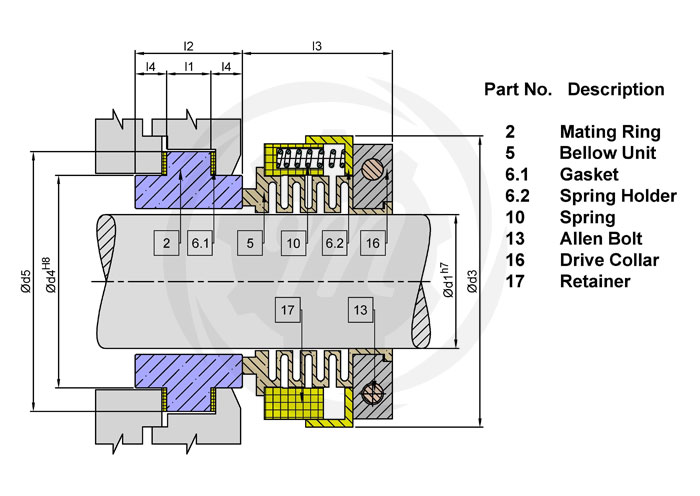

Teflon Bellow Mechanical Seals
(Type MS-TB10/TB10R)

Teflon PTFE Bellow Seals are designed to handle highly corrosive liquids.

PTFE Bellow seals are outside mounted with simple installation procedure and hence cost effective for corrosive media sealing.

Teflon Bellow Mechanical seals has been designated as Fixed & replaceable bellow face respectively.For replaceable version there is flexibility for selection of face material as per the media to be sealed, which can be easily removed & replaced.

  • Seal Face : Ceramic, GFT, CFT
  • Secondary Seals : PTFE / GFT
  • Metal Parts : SS 316 / Hastelloy

used in acids, alkalis & extremely corrosive chemical ,Strong Oxidising and all corrosive service

  • Pressure : 5 bars (Max)
  • Temperature : (-)20c to (+)90c
  • Speed : 2900 rpm (Max)
  • Sizes : 16 mm to 100 mm
