CONICAL SPRING MECHANICAL SEALS
026U Single Unbalanced Conical Spring Seals For Submersible Pumps ,Chemical Centrifugal Pumps,And Cooling Water Pumps
our experts professionals experienced, we are designing and offering an extensive array of Conical Spring Mechanical Seal. The offered seal is specially developed for extremely corrosive chemicals, including concentrated acids, salts, strong oxidizing and reducing agents, and chemically active organic. The seal is manufactured by using supreme grade materials and modern techniques procured from esteemed vendors in the market. Our clients can avail this Conical Spring Mechanical Seal at nominal rate from us. Providing you the best range of conical spring seals, single spring seal, multi spring balanced seal, multi spring unbalanced seal, multi spring reverse balanced seal and multi spring balanced non clog design seal with effective & timely delivery.

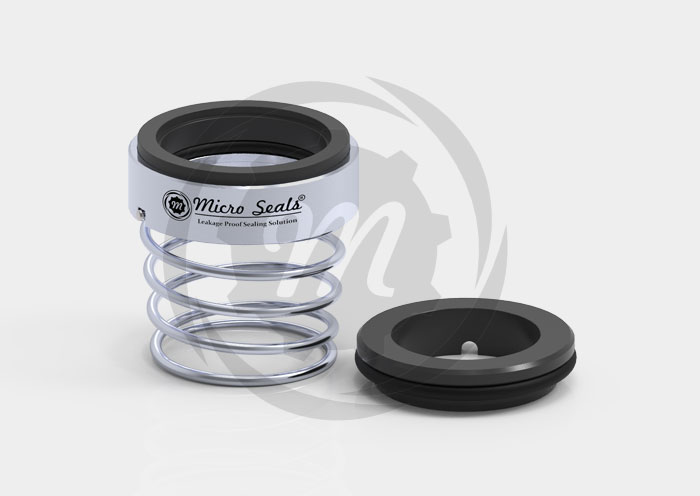

Conical Spring Unbalanced Mechanical Seals
Conical Spring Seals is single conical spring, unbalanced seal with O-ring provided for secondary sealing.
Since the Torque transmission is done by the single coil springs the seals are dependent on the directions of rotation, which is seen from the drive end of the shaft.
Conical spring Unbalanced seals has taper Spring of various type and dimension to suit lot of media.Right handed spring and left handed springs are provided for clockwise and anticlockwise rotating shafts respectively.
- Single spring mechanical seal
- Conical spring mechanical seal
- Single acting
- Unbalanced
- Inside mounted
- Dependent of direction of rotation
| Seal Ring Face | : Carbon, Silicon, TC |
| Mating Ring Face | : Silicon, TC |
| Secondary Seals | : Viton/PTFE/EPDM |
| Metal Parts | : SS 316/304, |
| Pressure | : 10 bars (Max) |
| Temperature | : (-)20c to (+)180c |
| Speed | : 10 m/sec |
| Size | : 10 mm to 100 mm |
Water Pump Submersible Pump Sewage Pump Centrifugal Pump

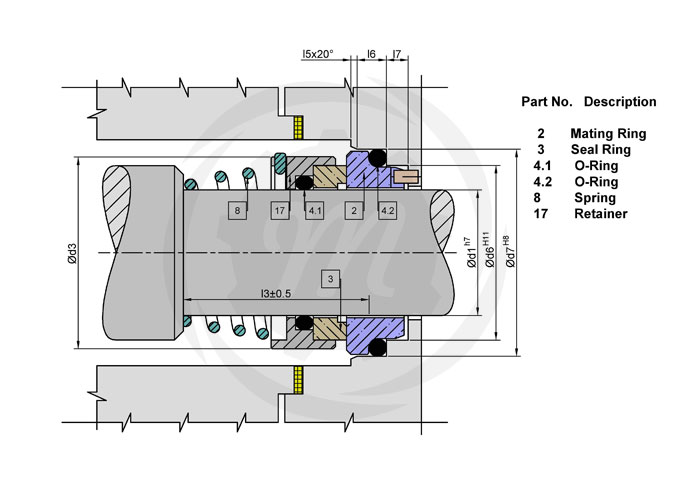

| Item No | Description |
|---|---|
| 2 | Mating Ring |
| 3 | Seal Ring |
| 4.1 | O-Ring |
| 4.2 | O-Ring |
| 8 | Spring |
| 17 | Retainer |
