Single Flow Dual Flow Water Rotary Joints
Mono Flow /Dual Port Water Service Rotary Joints Suitable For Cooling Application In BOPP and BOPET Film Lines , Plastic Lamination Lines and Hot Strip Steel Mills
The Type-MSU10 has mono and dual port for transfer of media. Pair of Ball Bearings for alignment of
rotor with housing. Single Spring for Seal faces and Elastomers. A key maintenance feature is the
cartridge design. This equipment is manufactured by using premium raw materials.
Dual Passage Water Rotary Joints

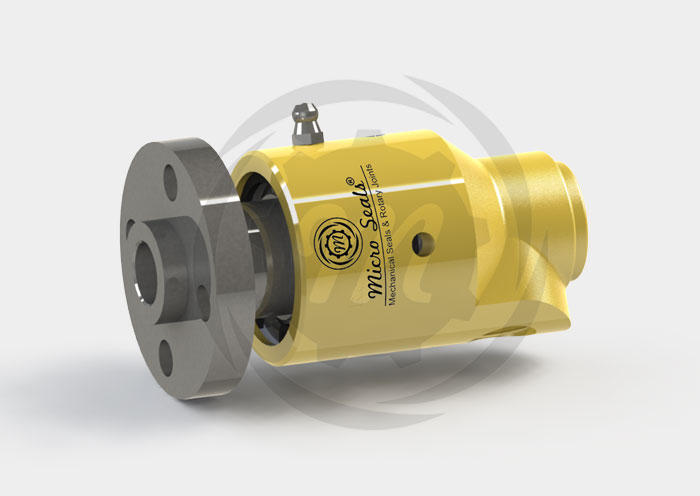

MSU10 Rotary Joints
- Monoflow and dualflow design
- Self-supported rotating union
- Radial housing connection
- Balanced mechanical seals
- Easy and quick replacement of sealing components
- Keyed rotor seal
- Ball bearings lubricated for life
- E.L.S. (Extended Life Service) seal combination for poor water quality
- Brass, Carbon Steel, Stainless Steel, C.I housing and stainless steel rotor
- Special options include threaded vent holes
| Seal Combinations | Carbon Graphite/Bronze for water; Carbon Graphite/Ceramic or SiC for hot oil, hot water and saturated steam; Tungsten Carbide/Ceramic or SiC for severe conditions such as poor water quality |
| Elastomer | Viton, EPDM, NBR, |
| MOC | SS 316, Brass, Carbon Steel, C.I |
| Size | 1/4″ (DN08) – 2″ (DN50) |
| Media | : Water, Steam, Hot Oil |
| Max. Pressure | : 51.7 bar |
| Max. Temperature | : 121°C |
| Max. Speed | : 3500 rpm |
Do Not Work With Maximum Pressure At Maximum Speed.

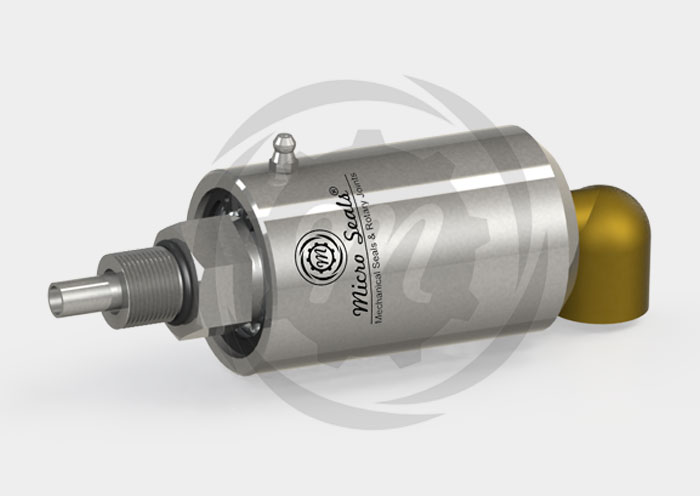

- Threaded Rotor Mono Flow And Dual Flow
- Quick Release Rotor Mono Flow And Dual Flow
- Flanged Rotor Mono Flow And Dual Flow
- Semiconductor
- Oil And Gas
- Paper And Corrugating
- Printing And Packaging
- Plastics
- Agriculture And Construction
- Food And Medical
- Tire And Rubber
- Chemical
“Deublin” 55/57 series
“Kadant” RX series
“Rototech” 3000 deries
“Rotofluid” 400 series
“Rotoflux” S series
“Maier” DP series
“Haag-zeissler” 9001ND series
“Filton” RE/REB/PB series
Duffnorton” 600 series
“Fourwent” FDU 5100/5200 series
“Pearl Joint” RXE/RXH Series
