Mono Flow Hydraulic, Brake Fluid Rotary Joints
Mono Flow Low Speed Hydraulic Rotary Joints For Air, Hydraulic Oil, Brake Fluid and Vacuum Service
The Type-MSU60 is single port rotary union for transfer of media like air/vaccuum and Hydraulic. Pair of Bearings for alignment of rotor with housing. Self supported rotary union with aluminium housing and stainless steel rotor. This equipment is manufactured by using premium raw materials. No inter passage leakage on dual flow design.

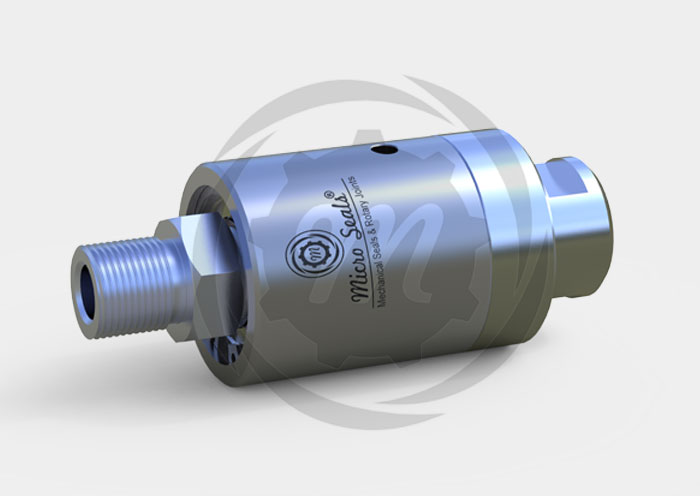

Mono Flow Rotary Joints For Hydraulic and Brake Fluid Service

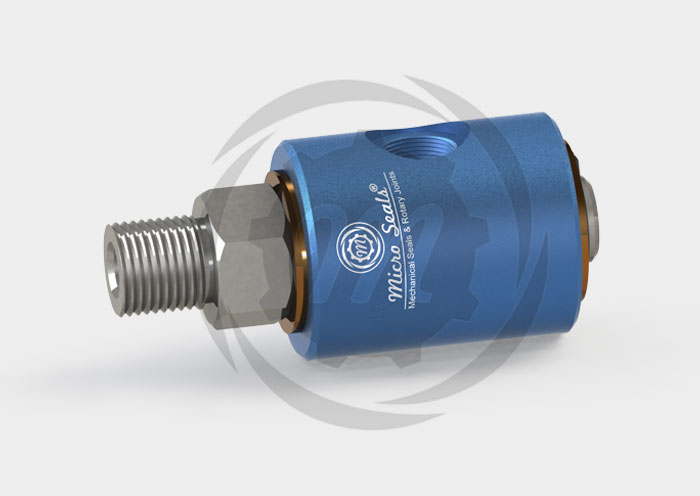

MSU60 Rotary Joints
- Monoflow design
- Rotating union is self-supported
- Axial housing connection
- Mechanical seals are balanced
- Ball bearings lubricated for life
- Low torque and weight optimised design
- Aluminium housing; stainless steel or carbon steel rotor, depending on model
| Elastomer | Viton, EPDM, NBR, |
| MOC | SS 316, Carbon Steel, Aluminium |
| Size | 1/8″ (DN06) – 1 1/2″ (DN40) |
| Media | : Air, Vacuum, Hydraulic oil, water |
| Max. Air Pressure | : 10 bar |
| Max. Vacuum | : 7 kPa |
| Max. Hydraulic Pressure | : 210 bar |
| Max. Brake fluid Pressure | : 207 bar |
| Max. Temperature | : 120°C |
| Max. Speed | : 250 rpm |
Do Not Work With Maximum Pressure At Maximum Speed.
- Threaded Rotor Mono Flow And Dual Flow
- Quick Release Rotor Mono Flow And Dual Flow
- Flanged Rotor Mono Flow And Dual Flow
- Oil And Gas
- Plastics
- Agriculture And Construction
- Food And Medical
- Chemical
- Hydro Power
- Printing And Packaging
- Tire And Rubber
“Deublin” 17 series
“Rototech” 3000 series
“Rotofluid” 400 series
“Rotoflux” S series
