MULTI SPRING REVERSED BALANCED MECHANICAL SEALS

  • FLOWSERVE RO Replacement Mechanical seal

  • LeakProof 88B2 Replacement Mechanical seal

  • Burgmann HJ92N Replacement Mechanical seal

  • John Crane Type 58U/59U Replacement seal

MULTI SPRING REVERSED BALANCED MECHANICAL SEALS

The globe star engineers (india) are the major mechanical seal providing company of India. We are considered as the trustworthy manufacturer, supplier and exporter of the MULTI SPRING REVERSED BALANCED SEALS.These seals are designed to handle corrosive or abrasive media, as the metal components of this seal do not come in contact with the media to be sealed. Due to its compact design, neither radial nor axial extra space is required for installation.

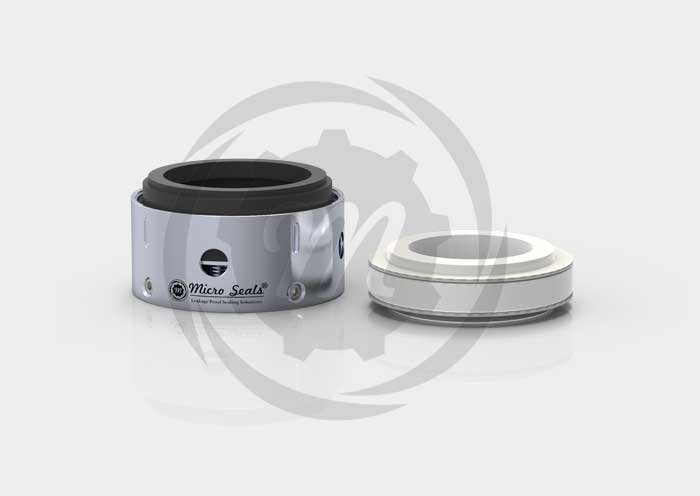

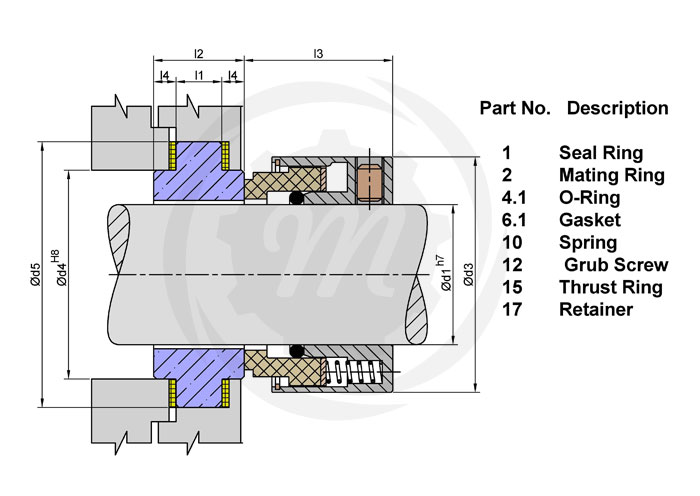

Reversed Balanced Multi spring seals

Reversed Balanced Mechanical Seals
(Type 036B)

Multi Spring Revesed Balance Seals sare external mounted multi coil spring Seals. Liquid pressure is used to close the Seal faces therefore very effective in high pressure and vacuum applications.

The unique feature of Pusher Type Reveresed Balanced Seals is that,it eleminated the shaft step or sleeves for balancing. It can be extremely useful for contaminated and light corrosive liquids as metal parts do not come in contact with media.

Reversed Balanced Seals eliminate movement of elastomer hence reduce fretting effect on shaft greatly.

  • Seal Ring Faces : Carbon, Silicon, TC
  • Mating Ring Faces : Silicon, TC
  • Secondary Seals :Viton / PTFE / GFT
  • Metal Parts : SS 316, Alloy 20,904L

Generally used for handling corrosive chemicals, hydrocarbons, general & light chemicals

  • Pressure : 10 bars (Max)
  • Temperature : (-)50c to (+)180c
  • Speed : 2900 rpm (Max)
  • Sizes : 10 mm to 100 mm
