MB14/MB15 Metal Bellow Mechanical Seal For Heat Transfer Fluids,High Temperature Application and For Corrosives Equipments

We are offer some of our products are  PTFE Seals, Metal Bellow Seals, Welded Metal Bellow SealsMechanical Metal Bellow SealsSpring Sealsrubber bellow Seals and Seal replacement parts.

The welded metal bellow seals products make use of the durability, pressure resistance and uniform displacement include bellows seals and vacuum bellows in semiconductor or electronic parts manufacturing facilities, and have earned a reputation for high performance.

Welded Metal Bellow Seals

(TYPE MS-MB14/MB15)

Metal Bellow Seals are widely used in high temperature and highly corrosive media and suitable for high start-up torque since the bellows unit is independent of torque transmission.

The unique feature of Welded Metal Bellow Mechanical Seals is that, there is no dynamic ‘O’ rings and therefore it will never hang up or damage the shaft and sleeve.

  • Single seal
  • Cartridge Unit
  • Balanced Seal
  • Independent of direction of rotation
  • Multiple Spring arrangement
  • Stationary Spring
Seal Ring Face   : Carbon, Silicon, TC
Mating Ring Face   : Silicon, TC
Secondary Seals   : Viton/PTFE/Graphite
Metal Parts   : SS 316,
Pressure   : up to 15 bars
Temperature   : (-)50c to (+)350c
Speed   : up to 25 m/s
Size   : 19 mm to 100 mm

Generally used for handling highly corrosive chemicals, high temperature applications and Hydrocarbons In Petrochemical industry, petroleum refinery , Paper & Pulp industry

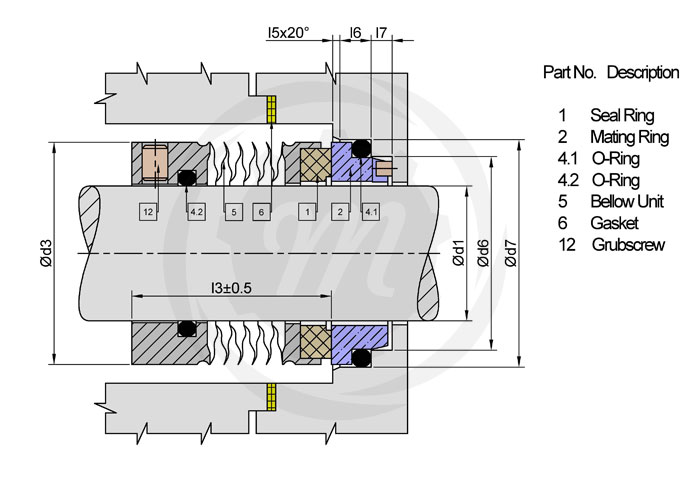

Item No Description
1 Seal Ring
2 Mating Ring
4.1 O-Ring
4.2 O-Ring
5 Bellow Unit
6 Gaskett
12 Grubscrew
