High Temperature High Speed Thermal Hot Oil and Steam Rotary Joints
Dual Channel Thermal Oil Rotary Joints Designed For Extreme Operating Conditions Including High Temperatures and Harsh Environments
The Type-MSJ41 is high temperature rotary joint for media Hot Oil. The steel rotor supported on extra long Carbon graphite bush bearings ensures larger bearing area enabling the rotary union to function trouble free for long durations without lubrication. With provision for siphon pipe, these are used in mono flow as well as dual flow applications. This equipment is manufactured using premium raw material

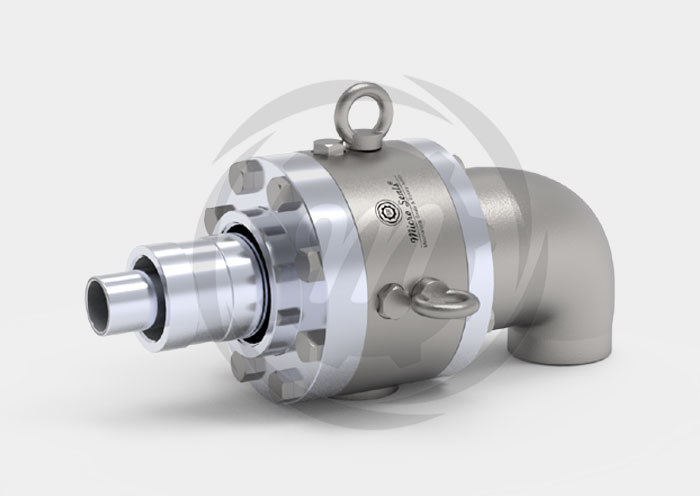

Dual Flow High Temperature Rotary Joints for Thermal oil, Hot Oil and Steam Service

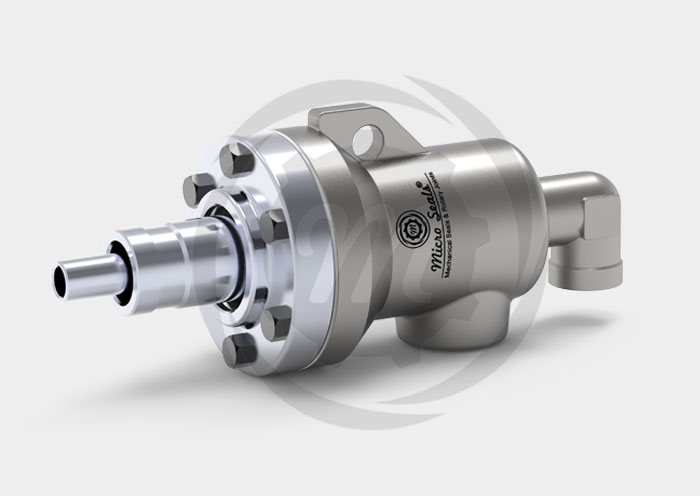

MSJ41 Rotary Joints
- Monoflow and dualflow design
- Self-supported rotating union
- Radial or Axial housing connection
- Balanced mechanical seals
- Easy and quick replacement of sealing components
- Graphite bush bearing
- Carbon Steel, Stainless Steel housing and stainless steel rotor
- Contacted parts made of 316 stainless steel
- Full media flow
| Bush Bearing | : Carbon Graphite |
| Elastomers | : Klinger, Graphoil, GFT |
| Sealing Faces | : Antimony Carbon, Resin Bonded Carbon |
| MOC | : SS 316, Carbon Steel, C.I (Nickel Plated) |
| Size | : 1/2″ (DN15) – 6″ (DN150) |
| Media | : Hot oil, thermic oil, saturated Steam, Hot water |
| Max. Pressure | : 17 bar |
| Max. Temperature | : 280°C |
| Max. Speed | : 750 rpm |
Do Not Work With Maximum Pressure At Maximum Speed.
- Oil And Gas
- Paper And Corrugating
- Printing And Packaging
- Plastics
- Tire And Rubber
“Rototech” 9000s, 9000HO series
“Deublin” N,H,HPS,9000 series
“Rotofluid” 900P/900R/900S series
“Rotoflux” G series
“Fourwent” FMU 9100 series
“Maier” H, M, DA series
“Johnson” Z series
“Kadant” SX, ELS, ELSX, LJ-PT, LJX series
“Duffnorton” 8000 series
