Machine Tool Coolant Rotary Joints For High Speed Application
Machine Tools Coolant Rotary Joints For High Speed Machine Tool Spindles To Transfer Fluid Like Coolant, Minimal Quantity Lubrication(MQL), Air and Cutting Oil
The Type-MSU90 is high-speed coolant rotary unions with a cut off characteristics popularly known as pop off characteristics. These are of compact design with balanced seal faces, Multilple Springs and a pair of ball bearing to maintain alignment of rotor. A pair of slinger set protects the bearings from direct contact with coolant in case of seal leakage.
High Speed Machine Tool Spindle Coolant Rotary Joints

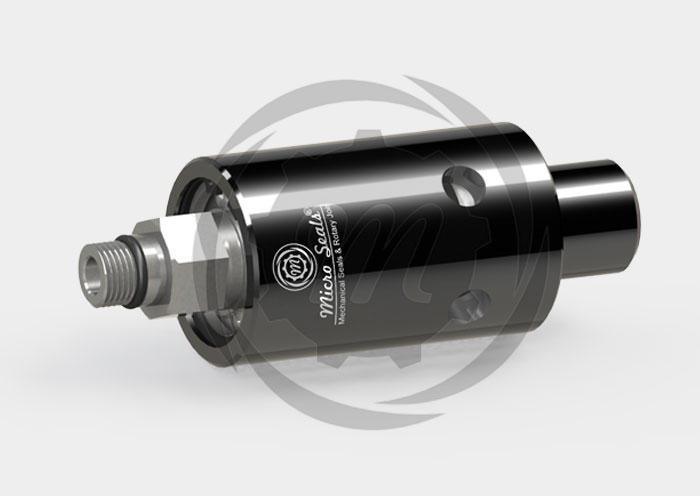

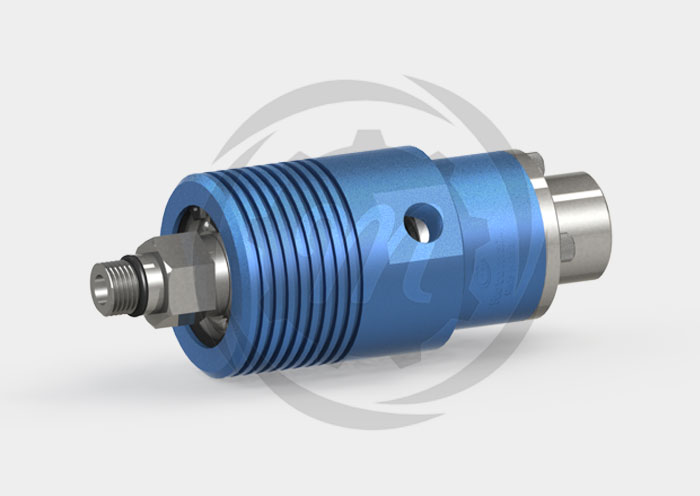

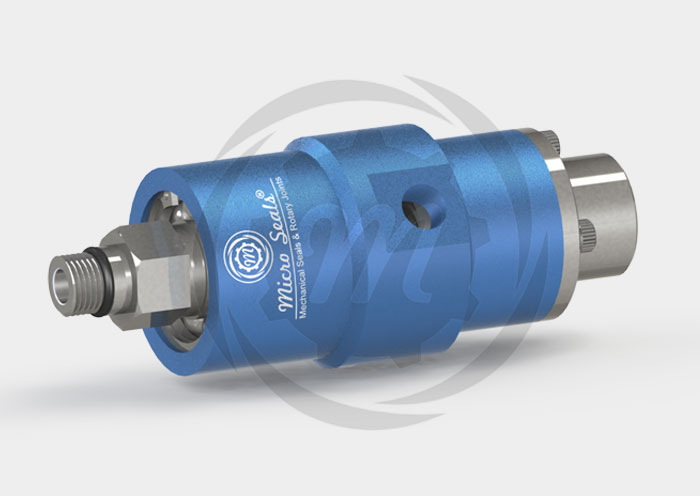

MSU90 Rotary Joints
- Single passage for coolant or MQL
- Closed seals for transfer line and similar applications
- Full-flow design has no obstructions to trap swarf or debris
- Bearing-supported with threaded rotor for easy installation
- Bearing isolator and vents to protect ball bearings
- Balanced mechanical seals made from silicon carbide for long life even under difficult operating conditions
- Anodized aluminum housing and stainless steel rotor resist corrosion
- Low torque and weight optimised design
| Seal Ring Faces | Silicon Carbide |
| Elastomer | Viton, EPDM, NBR, |
| Bearing | Precision Angular Contact Ball Bearing |
| MOC | SS 316, Carbon Steel, Aluminium |
| Size | 1/8″(DN06) – 3/8(DN10), or M10x1-M16x1.5 or 5/16”-24 UNF |
| Media | : Coolant, MQL, Air, Vacuum, Hydraulic oil, brake fluid |
| Max. Air Pressure | : 10 bar |
| Max. Vacuum | : 7 kPa |
| Max. Hydraulic Pressure | : 50 bar |
| Max. Brake fluid Pressure | : 50 bar |
| Max. Temperature | : 70°C |
| Max. Speed | : 15000 rpm |
Do Not Work With Maximum Pressure At Maximum Speed.
